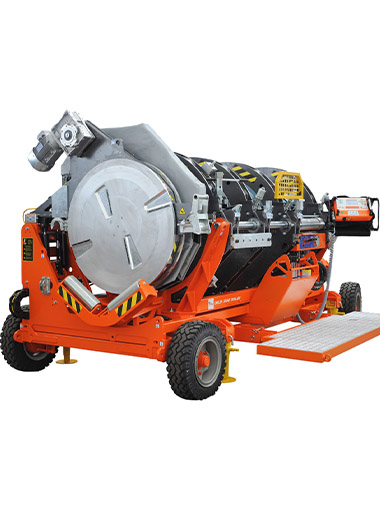

DELTA 630 ALL TERRAIN
DELTA 630 ALL TERRAIN is the Pipe and Fittings FUSION Machine designed to face the toughest working conditions.
DELTA 630 ALL TERRAIN wants to mark a turning point to the world of Field Fusion. It stands out for being extremely easy to set up and work with. Take the heating plate and facer disconnecting system for example; the positioning / removal of the pipes is made without obstacles, giving the operator more time for what really matters.
Minimum Size
225 MM
Maximum Size
630 MM
Materials
HDPE/PP
Power supply
diesel engine Perkins 2200 cc 22,7 kW
Fuel tank capacity
40 liters
Operational tank capacity
12 hours
Italian design, known for paying particular attention to details, gives DELTA 630 ALL TERRAIN many technical innovations that are indeed practical. Take the clamps hydraulic system, for instance - not only an aesthetical maneuver, but a protection against collisions while positioning the machine inside the trench. Take the low fuel consumption and soundproofing gear – protects the environment, your health and saves your money!
DELTA 630 ALL TERRAIN is available in 2 models:
DELTA 630 ALL TERRAIN CNC (automatic welding control system)
DELTA 630 ALL TERRAIN EASY LIFE (automated welding cycle)
Welding standard: ISO 21307 High Pressure.
Working range: Ø 225* - 630 mm; 8" IPS - 24" IPS; 8" DIPS ÷ 20" DIPS
*Ø 225 (from SDR 26 to SDR 7)
- 4 steering wheels drive
- Diesel-engine 2200 cc 22,7 Kw
- Self-contained with on-board generator
- Sliding 3rd CLAMP for fittings welding
- Automatic welding System “Easy Life”
- DATA-LOGGING with GPS
- Possibility to pre-set 20 customized
- Memory 4000 welding cycles
- Report PDF
- Detachable Control Panel
- Remotely wire-controlled up to 12 m
- Trench-Friendly
- SmartLock Inserts
- Hydraulic Lifts
- Hydraulic-controlled Clamps and Milling cutter
- Climbs rough terrain up to 30%
- Wi-Fi ready App "SET and GO PRO"
ON REQUEST (ACCESSORIES)
- Clamps’ inserts from Ø 225 to 630 mm
- Tool for flange necks/stub-end holder
- Kit for IN-DITCH use
| Materials | HDPE/PP |
| Working range | Ø 225* ÷ 630 mm 8" IPS ÷
24" DIPS * (SDR 26 ÷ 7) |
| Power supply | diesel engine Perkins 2200 cc 22,7 kW |
| Fuel tank capacity | 40 liters |
| operational tank capacity | 12 hours |
| Weight | 3000 Kg |
| Dimension | 2200x3100X2000 mm |
