BASIC 200 BUTT FUSION
Minimum Size
63 MM
Maximum Size
200 MM
Materials
HDPE - PP - PB - PVDF
Power supply
110 V; 230 V 50/60 Hz
Total absorbed power
3250 W
Pressure working range
0 ÷ 150 bar

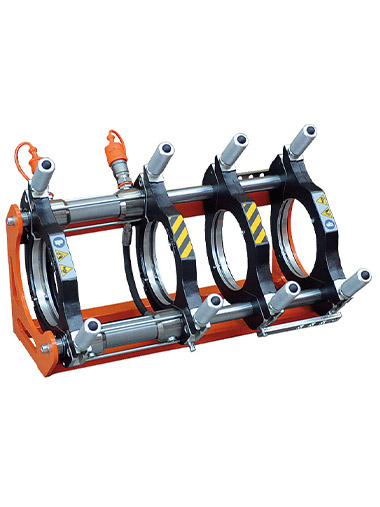

- A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings

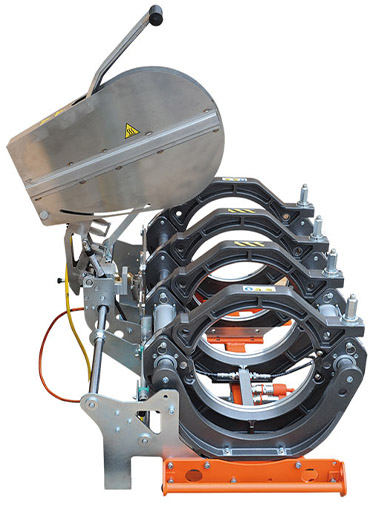

- An extractable heating plate with DIGITAL DRAGON, high - precision electronic thermo-regulator
- An extractable milling cutter, with safety micro-switch
- An electrohydraulic gearcase, with a clamp opening and closing lever
- A hydraulic hoses with non – drip quick couplings
- Adapters from Ø 63 to 180 mm
ON REQUEST (ACCESSORIES)
- Tool for flange necks
- Trolley
- Rollers
- THE INSPECTOR Data-logging
- Pre-insulated bag for heating plate
| Materials | HDPE - PP - PB - PVDF |
| Working range | Ø 63 ÷ 200 mm |
| Power supply | 110 V; 230 V 50/60 Hz |
| Total absorbed power | 3250 W |
| Working temperature | 180° ÷ 280° C |
| Pressure working range | 0 ÷ 150 bar |
| Weight only body machine | 39 Kg |
| Dimension | 685x460x420 mm |
