ZC-600H DOUBLE WALL CORRUGATED PIPE EXTRUSION

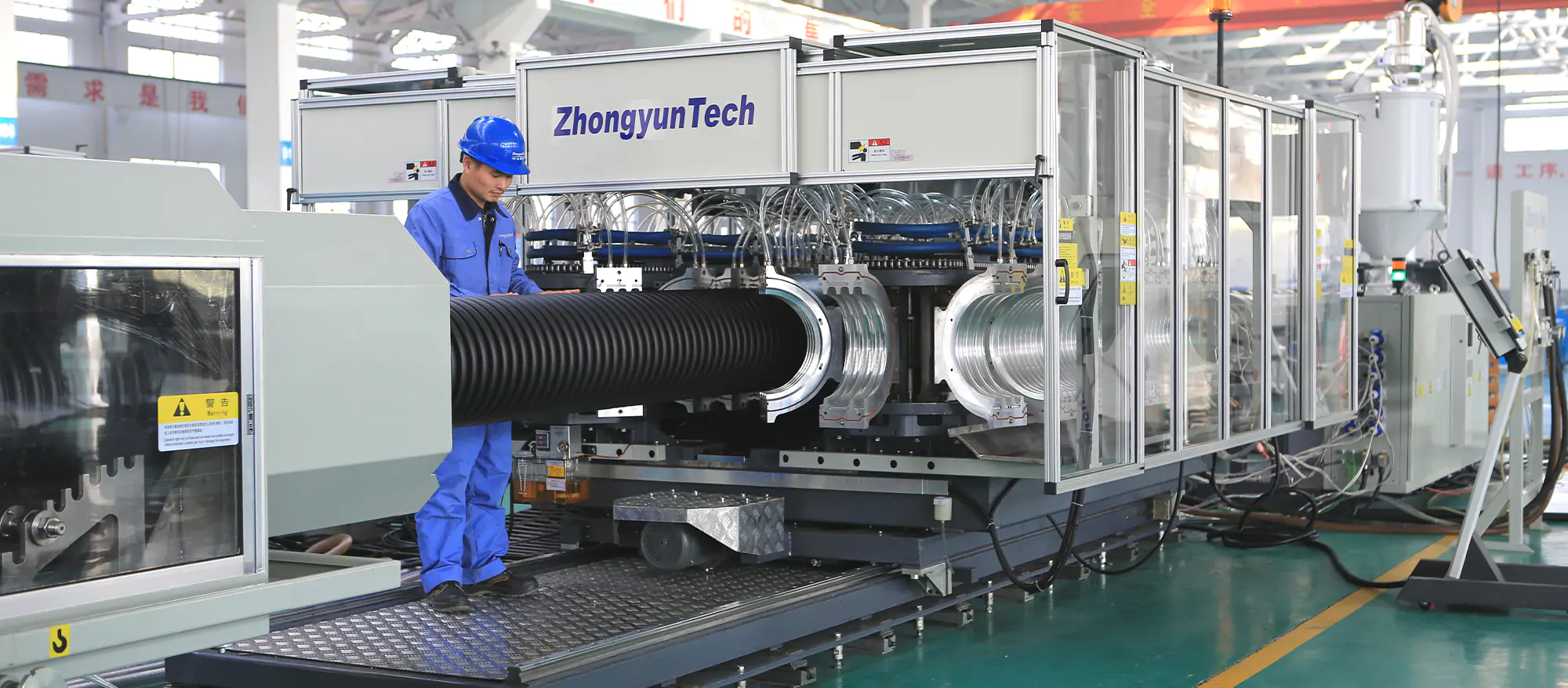

ZC-600H High-Speed Extrusion Line for Double Wall Corrugated Pipe

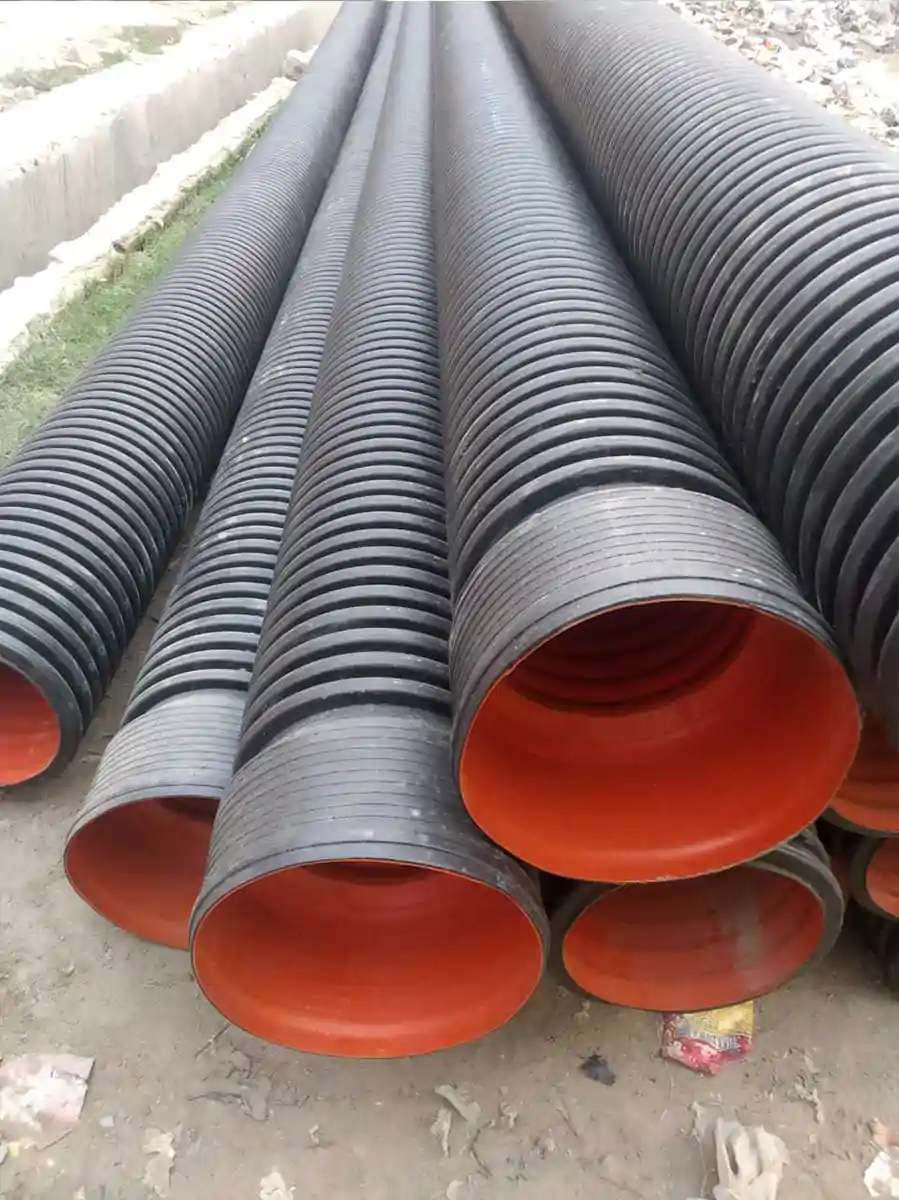

Field of application
- Cable protection conduit for telecom cables and electricity cables.
- Protection pipes for community heating systems.
- Drainage pipes for streets, squares, golf course and sports field.
- Storm water and sewage.
Production volume
1150 KG per Hour
Minimum Size
100 MM
Maximum Size
630 MM
Installed gross capacity
512kw
Normal working power
310kw
Maximum production speed
5.4m/min
Features of ZC-600H line
- Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 5.4m/min.
- Low energy consumption help to cut production cost.
- Efficient vacuum system for forming perfect pipes.
- Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
- Easy and quick changeover between different sizes of moulds.
- The complete extrusion line runs full-automatically.
- Corrugator and extruders are synchronously controlled.
- Harden treated screw and barrels for longer life span and durability.
- Remote Service is available.
- Toolings (moulds) compatible to ZC-300H line, ZC-1000H line and ZC-1200H.
| Main Technical Parameters | |
| Pipe Range Min ID | 100mm |
| Pipe Range Max OD | 630mm |
| Installed gross capacity | 512kw |
| Normal working power | 310kw |
| Maximum production speed | 5.4m/min |
| Maximum Output | 1150kg/hr |
| Overall dimension(L*W*H) | 35m×5.5m×3.8m |
| Composing of the extrusion line | |
| Model SJPE-90/33B single screw extruder | 1 set |
| Model SJPE-120/33B single screw extruder | 1 set |
| Model ZC-600H high-speed water cooling corrugator | 1 set |
| Model 600 spray cooling bath | 1 set |
| Model 600 automatic sawdust-free cutting machine | 1 set |
| Model 600 unloading device with weighing system | 1 set |
