ZC-1200H DOUBLE WALL CORRUGATED PIPE EXTRUSION

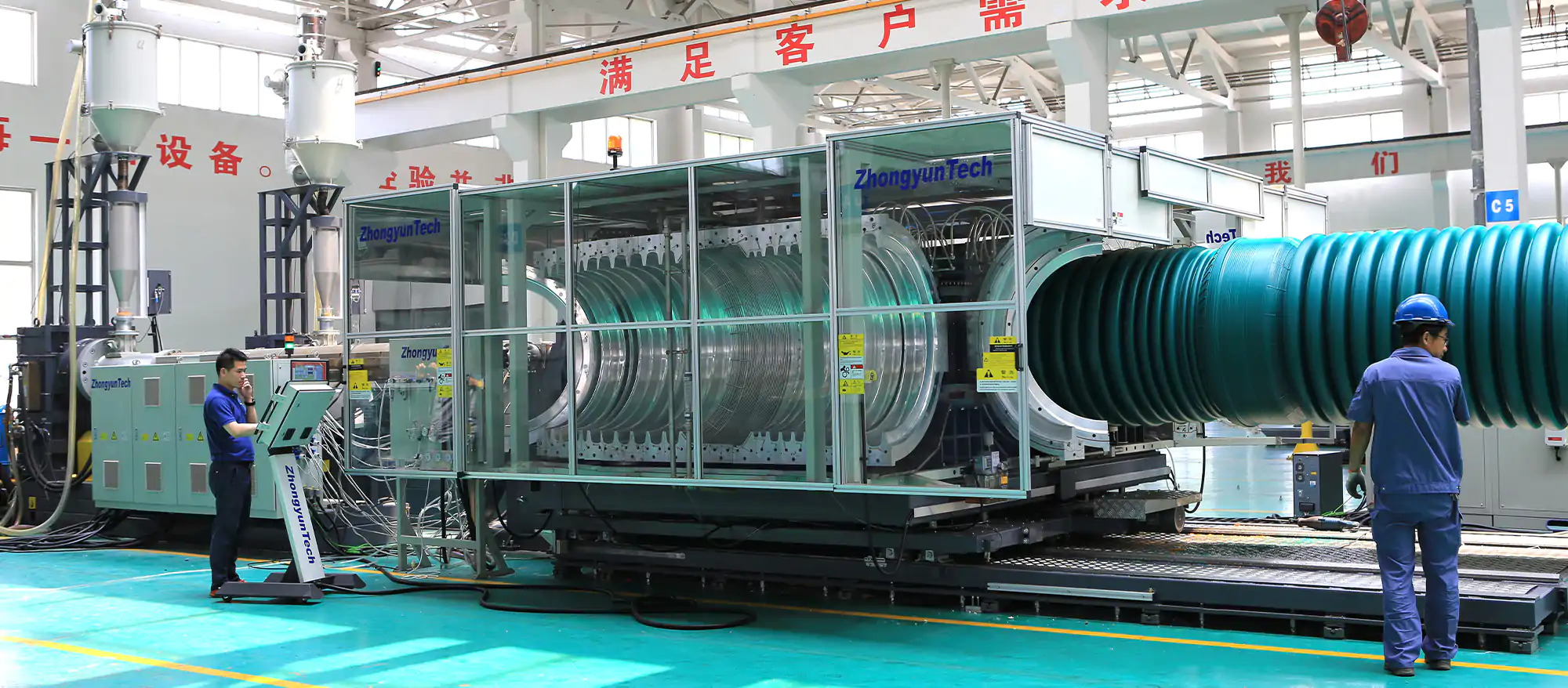

ZC-1200H High-Speed Extrusion Line for Double Wall Corrugated Pipe

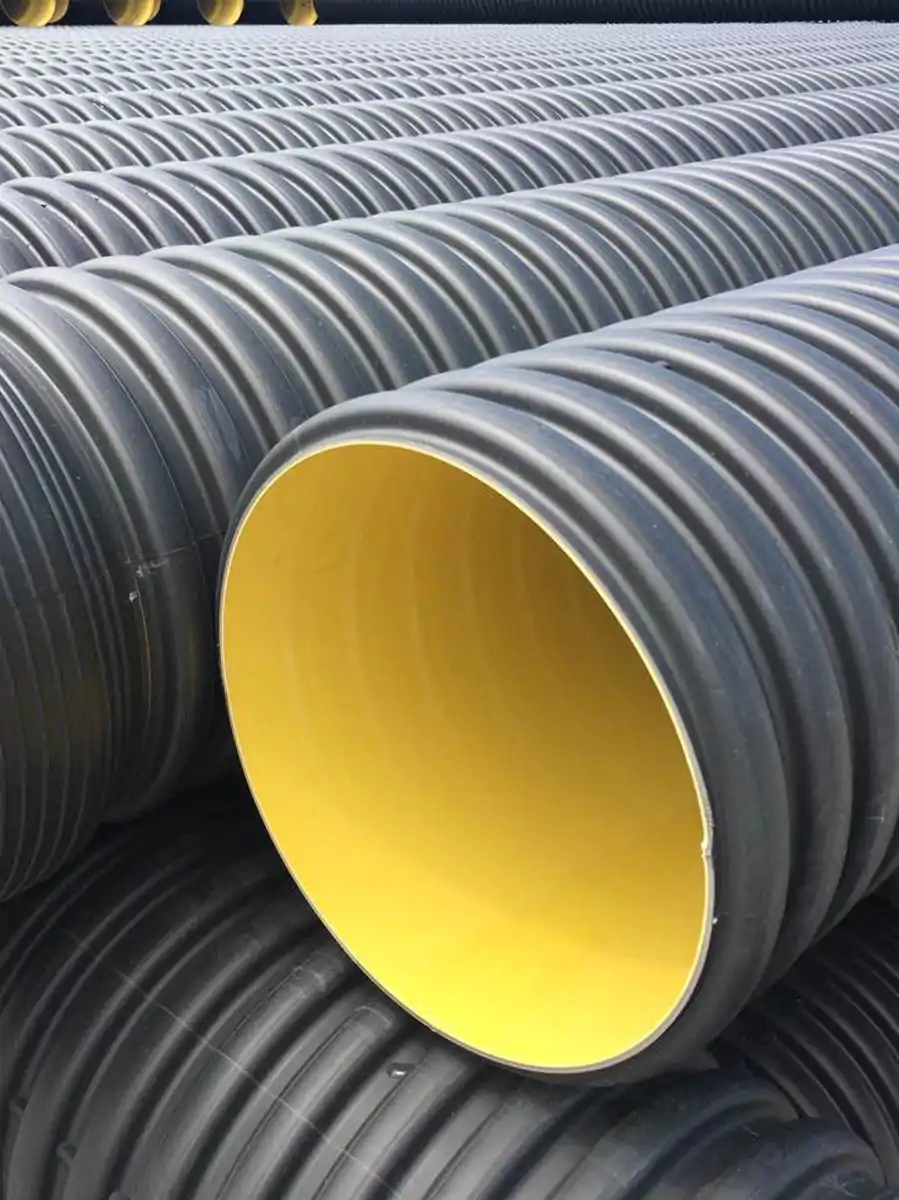

Field of application
- Storm water and sewage.
- Drainage pipes for sports field, streets, squares and communities.
- Protection pipes for community heating systems.
- Infrastructure and civil engineering.
- Features of ZC-1200H line
Features of ZC-1200H line
- Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 3.8m/min.
- Low energy consumption help to cut production cost.
- Efficient vacuum system for forming perfect pipes.
- Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
- The complete extrusion line runs full-automatically.
- Corrugator and extruders are synchronously controlled.
- Harden treated screw and barrels for longer life span and durability.
- Remote Service is available.
- Toolings (moulds) compatible to ZC-600H line, ZC-1000H line and ZC-1800H.
| Main Technical Parameters | |
| Pipe Range Min ID | 300mm |
| Pipe Range Max OD | 1200mm |
| Installed gross capacity | 890kw |
| Normal working power | 600kw |
| Maximum production speed | 3.8m/min |
| Maximum Output | 1500kg/hr |
| Overall dimension(L*W*H) | 38mx8.5mx4.2m |
| Composing of the extrusion line | |
| Model SJPE-120/33B single screw extruder | 1 set |
| Model SJPE-150/33B single screw extruder | 1 set |
| Model ZC-1200H high-speed water cooling corrugator | 1 set |
| Model 1200 spray cooling bath | 1 set |
| Model 1200 automatic sawdust-free cutting machine | 1 set |
| Model 1200 unloading device with weighing system | 1 set |
