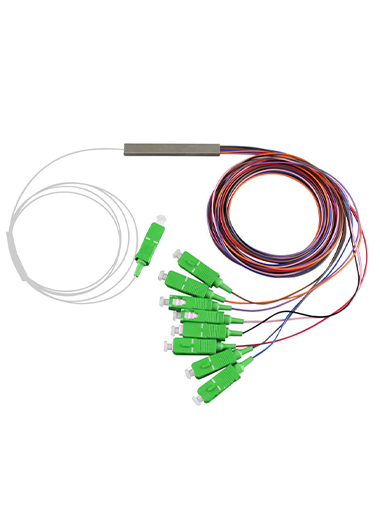

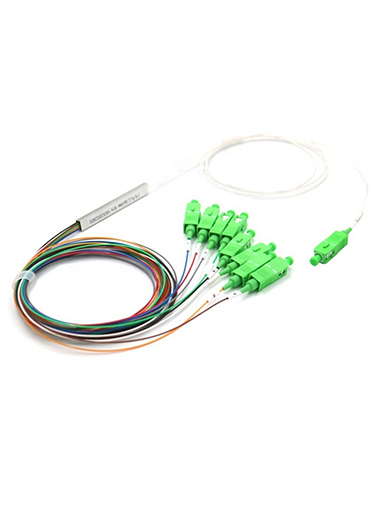

OPTIC PLC SPLITTER 1X8 PLC SPLITTER FOR FTTH / PON
Fiber Channel
1x8
Connector Type
SC / APC
Cable Diameter
0.9mm Tight Buffer
Wavelength Range
1260 ~ 1650 Nm
Application of Fiberall PLC Splitter
·
Passive Optical Networks (
PON )
·
Community Antenna
Television ( CATV )
·
Fiber To The Home ( FTTH )
·
Long Haul Telecommunication
·
Optical Distribution
Network ( ODN )
·
Fiber management System (
FMS )
| Fiber Ports | 1x8 |
| Operating Wavelength | 1260~1650nm |
| Insertion Loss(dB) | Max. 10.5 |
| Loss Uniformity(dB) | Max. 0.8 |
| Polarization Dependent Loss (dB) | Max. 0.2 |
| Optical Power(mw) | Max. 300 |
| Return Loss(dB) | Min. UPC: 50 APC: 55 |
| Directivity(dB) | Min. 55 |
| Fiber Type | Bend Insensitive SM G657A1 Fiber |
| Humidity Range(rh) | 5% ~ 85% |
| Operating Temperature(° C) | -40 ~ 85 |
| Storage Temperature(° C) | -40 ~ 85 |
| Optical: | Tested at 1310nm,1550nm and 1625nm |
| Dry heat: | BS EN 60068-2-2 Test Bb |
| Damp heat: | IEC 60068-2-3: 1969 |
| Change of temperature: | IEC 60068-2-14: 1984 |
| Vibration: | IEC 60068-2-6: 1995 |
| Shock: | IEC 60068-2-27: 1987 |
