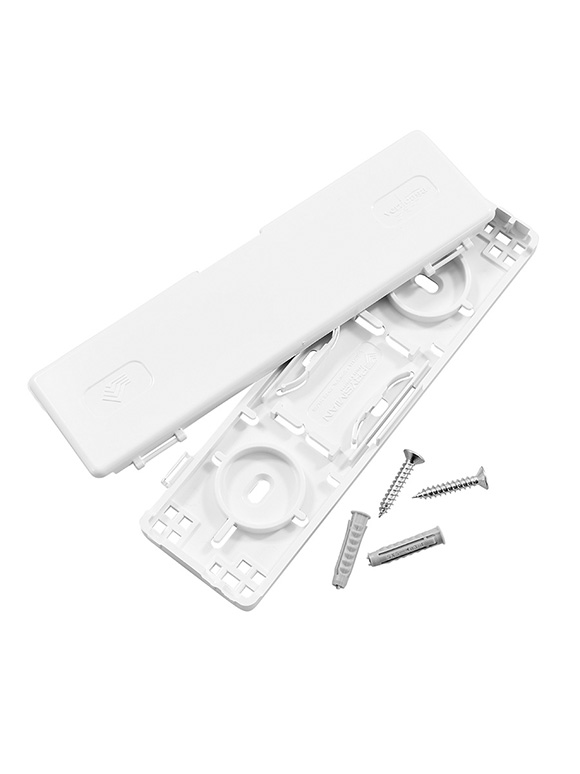

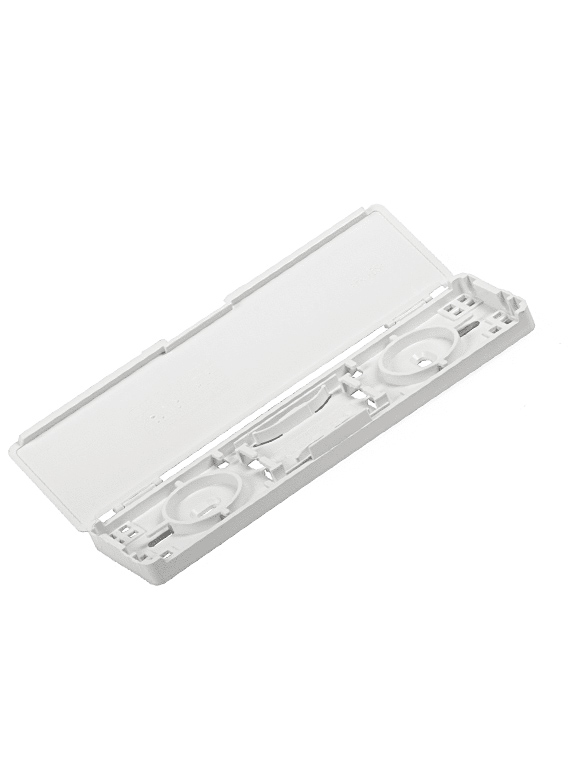

VERTICASA MECHANICAL SPLICE HOLDER (MSH)
Part Number
XCPSC00527
Number of cable ports
3 Input - 3 Output
Maximum splice capacity
2 fibres- mechanical splice, 4 fibres – heat shrink splice
Maximum cable diameter
6 mm
Features and Benefits
• Allows splicing from cable to cable for up to 2 fibers.
• Suitable for cables of up to 6mm in diameter.
• The compact dimensions 165 x 46 x 13 enable the MSH to be installed along the FTTx networks where access is restricted: riser, duct, etc…
• Hinge open cover for easy access.
• Two mechanical splices or 4 heat shrink splices protectors can be accommodated
• Easily installed and fitted to the wall or inside a riser.
• Input/output cables are secured at the cable entry levels.
• For internal use only.
• Unit manufactured from fire resistant UL94-V0 rated material.
• The standard color is white RAL 9016. Other colors are available on request.
| Number of cable ports: | 3 Input Cable - 3 Output Cable |
| Maximum splice capacity: | 2 fibers- mechanical splice, 4 fibers – heat shrink splice |
| Maximum cable diameter (mm): | 6 mm |
| Required space envelope (mm): | (L) 165 x (W) 46 x (D) 13 |
| Operating temperature: | -20oC to + 60oC (5 to 95% RH) |
| Material Internal Unit:- | |
| Cover: | FR ABS – White RAL 9016 |
| Base: | FR ABS – White RAL 9016 |
