DELTA 1000 BUTT FUSION

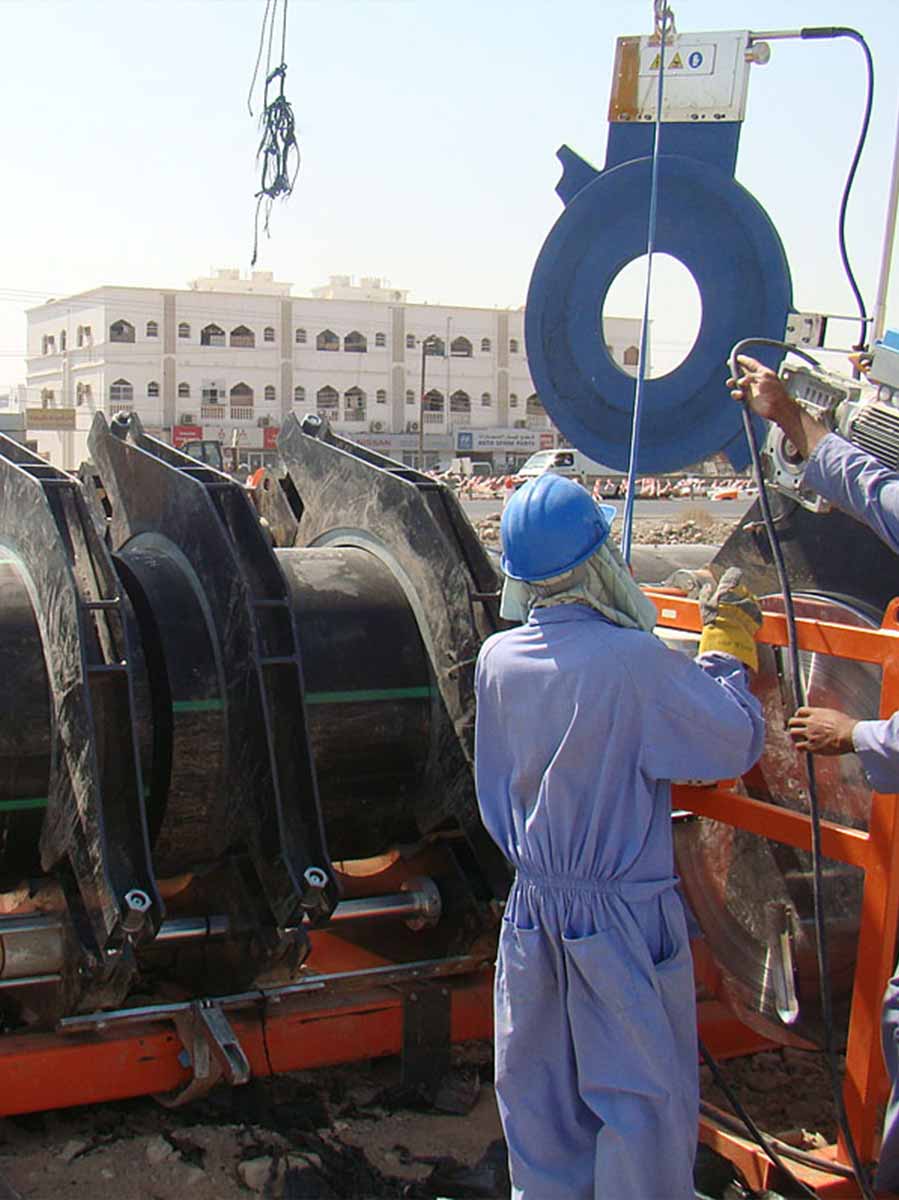

DELTA 1000 can weld fittings such as elbows, tees, wyes and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fitting have to be locked in the 4th clamp. Short neck stub ends can be welded with the help of a special tool (on request).

Minimum Size

630 MM

Maximum Size

1000 MM

Materials

HDPE/PP/PVDF

Power supply

400 V Three phase 50/60 Hz

Total absorbed power

25000 W

Pressure working range

0 ÷ 150 bar

Description
Technical

- A machine body with a steel bearing frame

- Clamps and inserts in steel

- Self detaching device: helps removing the heating plate during welding procedure

- An extractable heating plate with separate thermometer for reading the working temperature

- An extractable electric milling cutter with a safety microswitch and overload cutout

- An electrohydraulic gearcase

- An electrical panel with power outlet for the heating plate and crane

- A milling cutter/heating plate support

ON REQUEST (ACCESSORIES)

- Clamps’ inserts from Ø 630 to 900 mm

- Tool for flange necks

- Electrical crane

- Machine body trolley

- Data-logging THE INSPECTOR

- Rollers

Materials	HDPE/PP/PVDF
Working range	Ø 630 ÷ 1000 mm
Power supply	400 V Three phase 50/60 Hz
Total absorbed power	25000 W
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machines	2500 Kg
Dimension	2463x1780x1700 mm
