DELTA 1600 BUTT FUSION

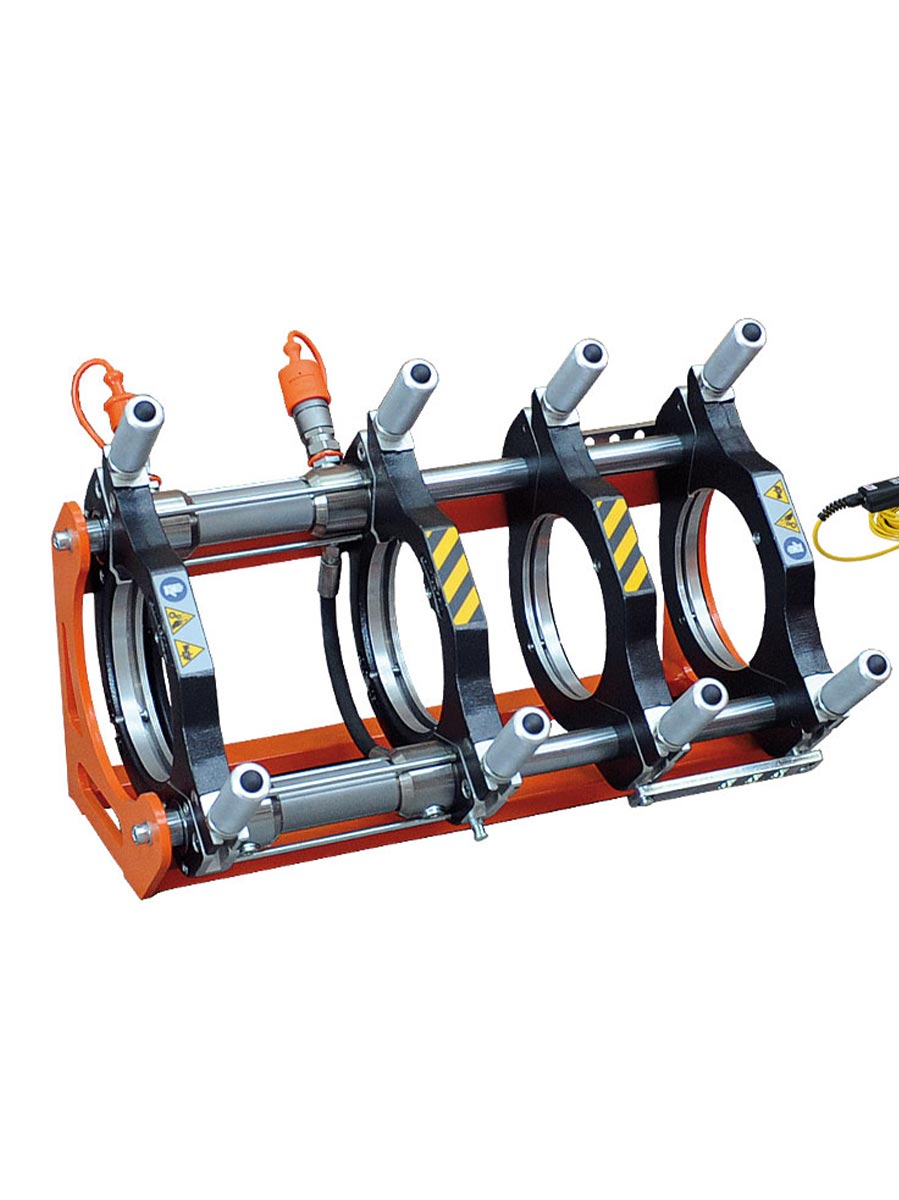

DELTA 1600 HDR is a self-aligning welding machine with hydraulic clamps suitable for welding HDPE pipes for the transport of water and other fluids under pressure, up to Ø 1600 mm. The DELTA 1600 is designed in accordance to International standards (UNI 10565, ISO 12176-1). The DELTA 1600 can weld fittings such as elbows, tees, branches and flange necks.

Minimum Size

800 MM

Maximum Size

1600 MM

Materials

HDPE/PP

Power supply

400 V Three phase 50/60 Hz

Total absorbed power

45000 W

Pressure working range

0 ÷ 150 bar

Brochure

Description
Technical

- Robust machine body made of steel

- Steel hydraulic clamping

- Automatic detaching device of heating plate

- Raised platform deck for perfect monitoring of fusion process

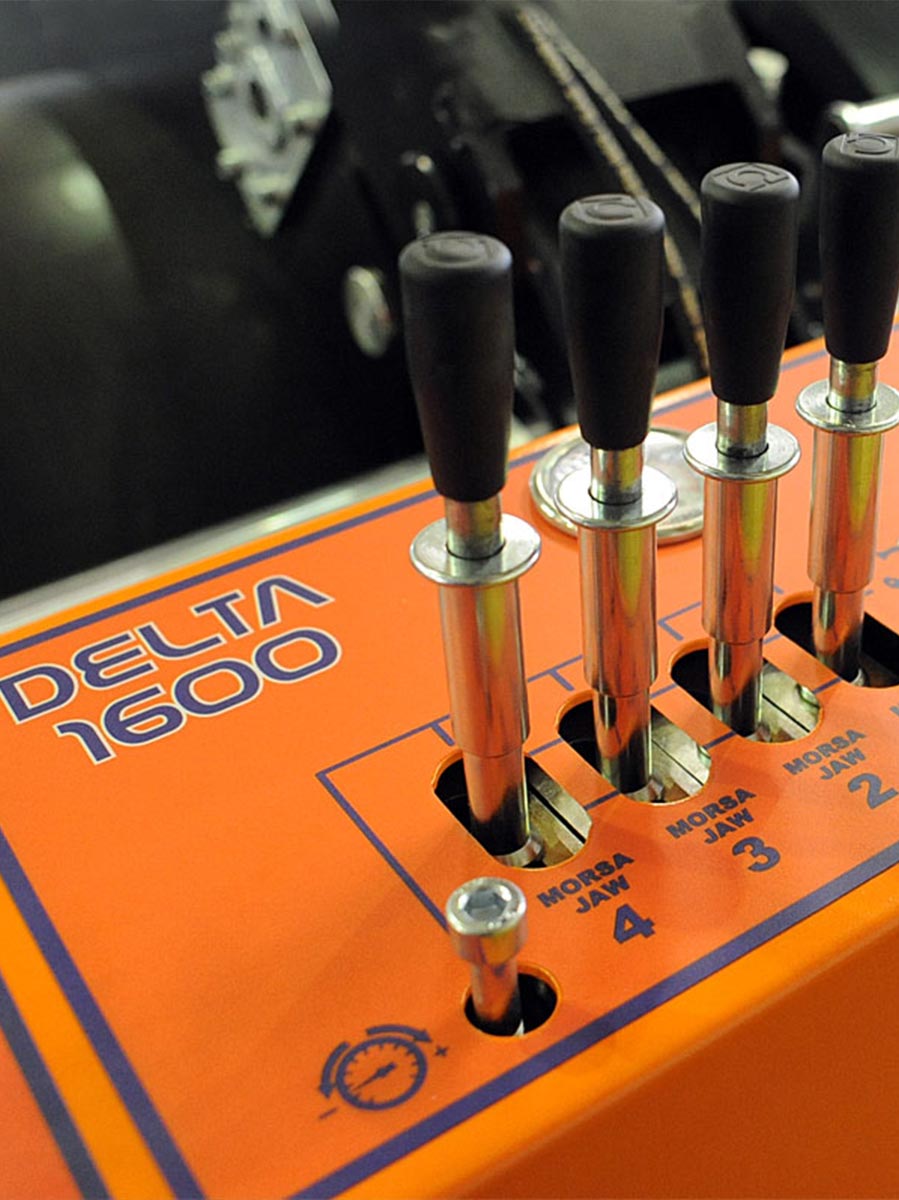

- Easy to operate control panel

- INSPECTOR data logger compatible

- On board hydraulic control gearcase

- Pressure adjustment and pressure release valves for easy operations

- Hydraulically controller facer with safety microswitch

- Teflon coated heating plate with indipendent thermometer

ON REQUEST (ACCESSORIES)

- Hydraulic pipe lift rollers

- 4 wheeled trolley with extendable levellers for stabilization

- THE INSPECTOR data logging

- Steel inserts

- Electrical crane

Materials	HDPE/PP
Working range	Ø 800 ÷ 1600 mm
Power supply	400 V Three phase 50/60 Hz
Total absorbed power	45000 W
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machines	4800 Kg
Dimension	3550x2400X2550 mm
