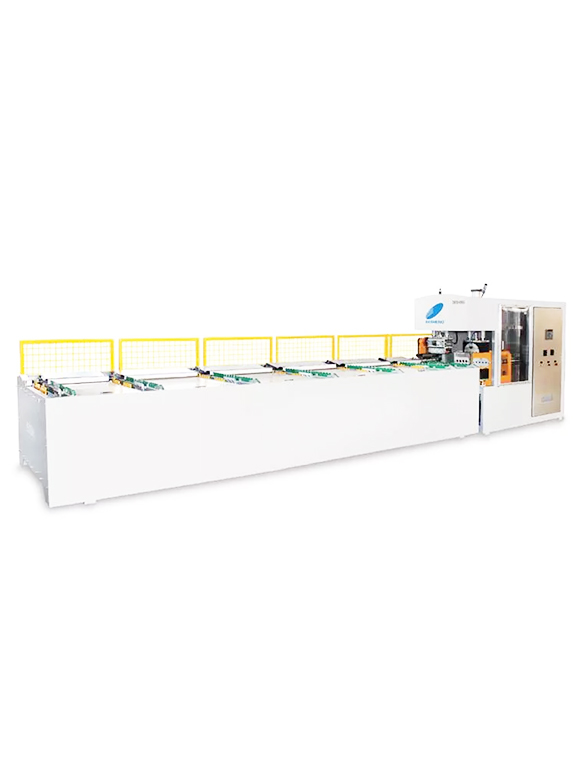

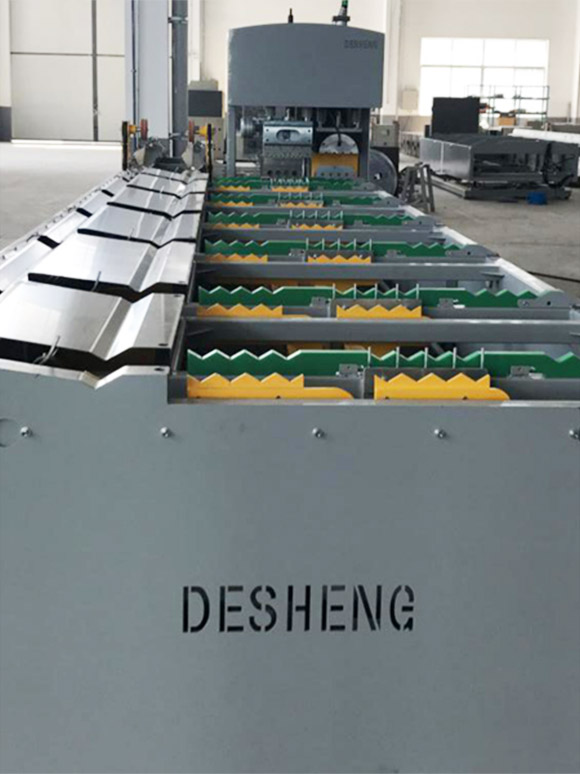

DS63S-NI AUTOMATIC TWIN LINE BELLING MACHINE

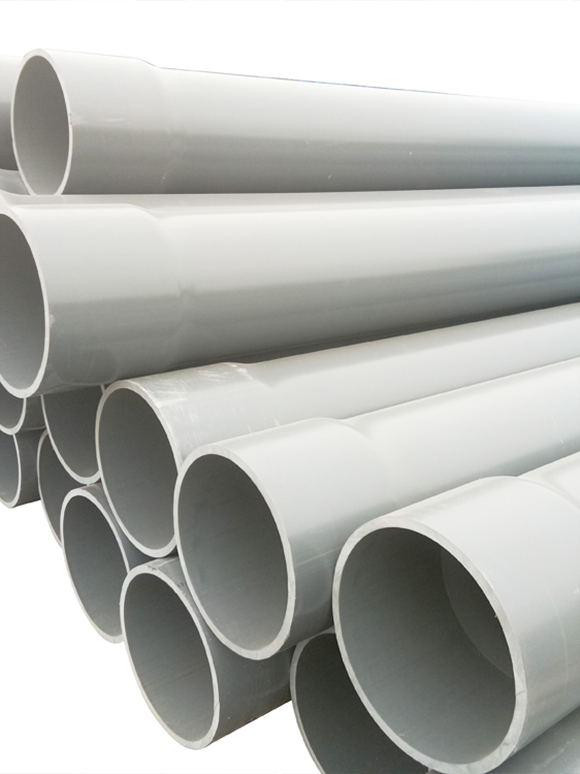

Belling Machine DS63S-NI is mainly used for PVC pipes with straight type (U-type) socket. It can work offline & online. This machine is fully automatic and easy to operate.
Minimum Size
16 MM
Maximum Size
63 MM
Model
DS63S-NI
standard
U-PVC1002.1-2006 (as request)
Length
3m - 6m
Heating way
infra-red light heating, pipe is rotary when heating
| Pipe standards | |
| Model | DS63S-NI |
| standard | U-PVC1002.1-2006 (as request) |
| Diameter | 16mm - 63mm |
| Length | 3m - 6m |
| Heating | |
| Heating way | infra-red light heating, pipe is rotary when heating |
| Electrical | |
| PLC and Screen | Siemens |
| low-voltage apparatus | Schneider, Omron |
| Total Power | 8.4KW |
| Pneumatic | Compressed air pressure: 0.6Mpa |
| Equipment appearance | |
| Machine type | Automatic, twin line |
| ?16-32 / 4 pipes/cycle | |
| ?40 / 3 pipes/cycle | |
| ?50-?63 / 2 pipes/cycle | |
| Machine dimension | 7650mm(L)×1650mm(W)×1900mm(H) |
| Machine weight | 2800kg |
| Operating principle | |
| U-type | PUSHING THE MOULD DIRECTLY INTO PIPE |
| Cooling type | Air & Water - cooling |
