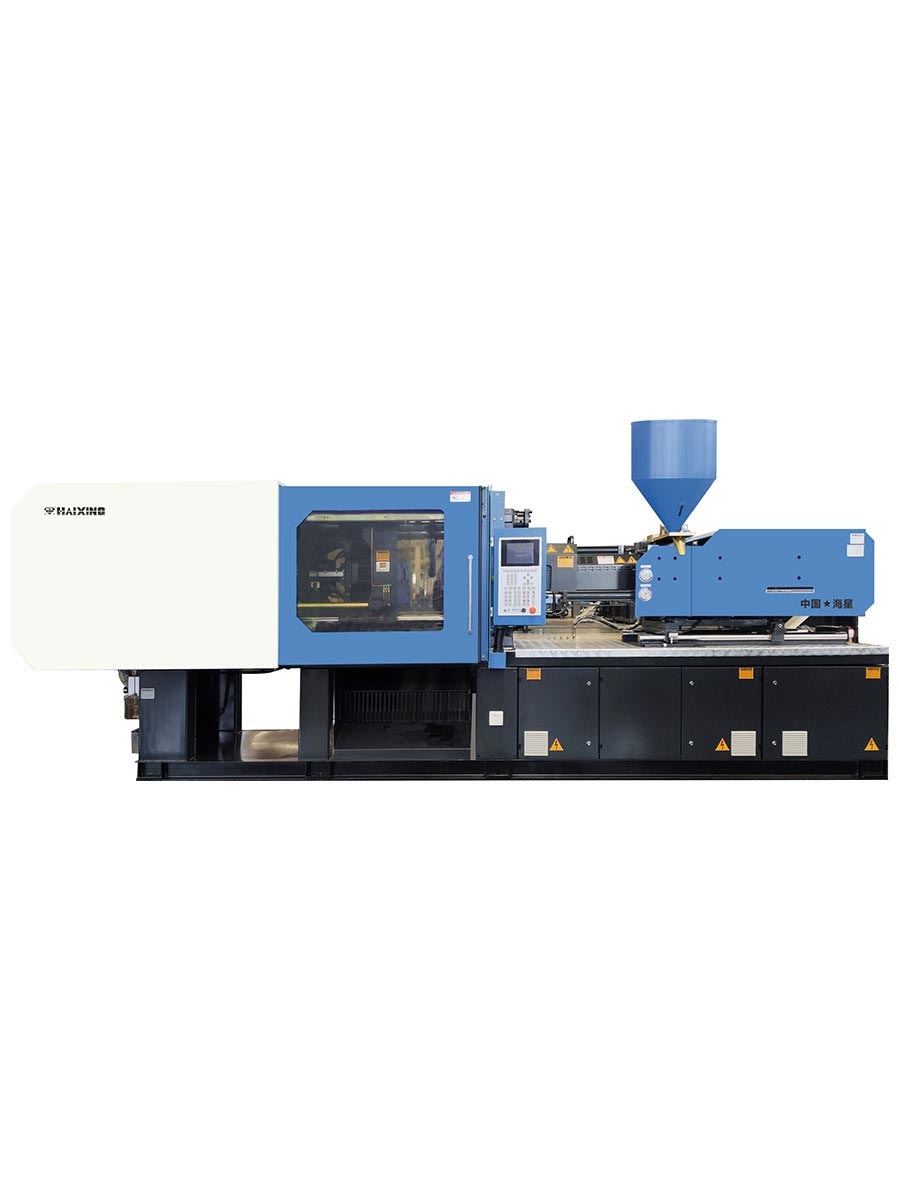

HXF570 VARIABLE DISPLACEMENT PUMP INJECTION

HXF-V is a new series, the variable displacement pump makes the hydraulic output power always matches with the system requirement. No extra-energy lost via the overflow valve. Comparing with traditional machines, energy saving efficient is around 20%-40% which causes cost reduction obviously.
Shot weight (mm)

1788 - 3179

Space between tie bars (mm)

835 X 835

Clamping force (KN)

5700

Screw diameter (mm)

75 - 100

  Brochure
DESCRIPTION
Item UNIT HXF570
INJECTION UNIT   Screw A Screw B Screw C Screw D
Screw diameter mm 75 84 90 100
Screw L/Dratio L/D 23.6 21.1 197 17.7
Shot Volume cm3 1987 2492 2861 3532
Shot weight g 1788 2242 2575 3179
(PS) oz 63.1 79.1 90.8 112.1
Injection Pressure Mpa 205 163 142 115
Injection Speed mm/s 90 90 90 90
Injection Stroke mm 450 450 450 450
Screw Speed rpm 0~110 0~110 0~110 0~110

CLAMPING UNIT
Clamping force KN 5700
Toggle Stroke mm 850
Space between tie bars mm 835 X 835

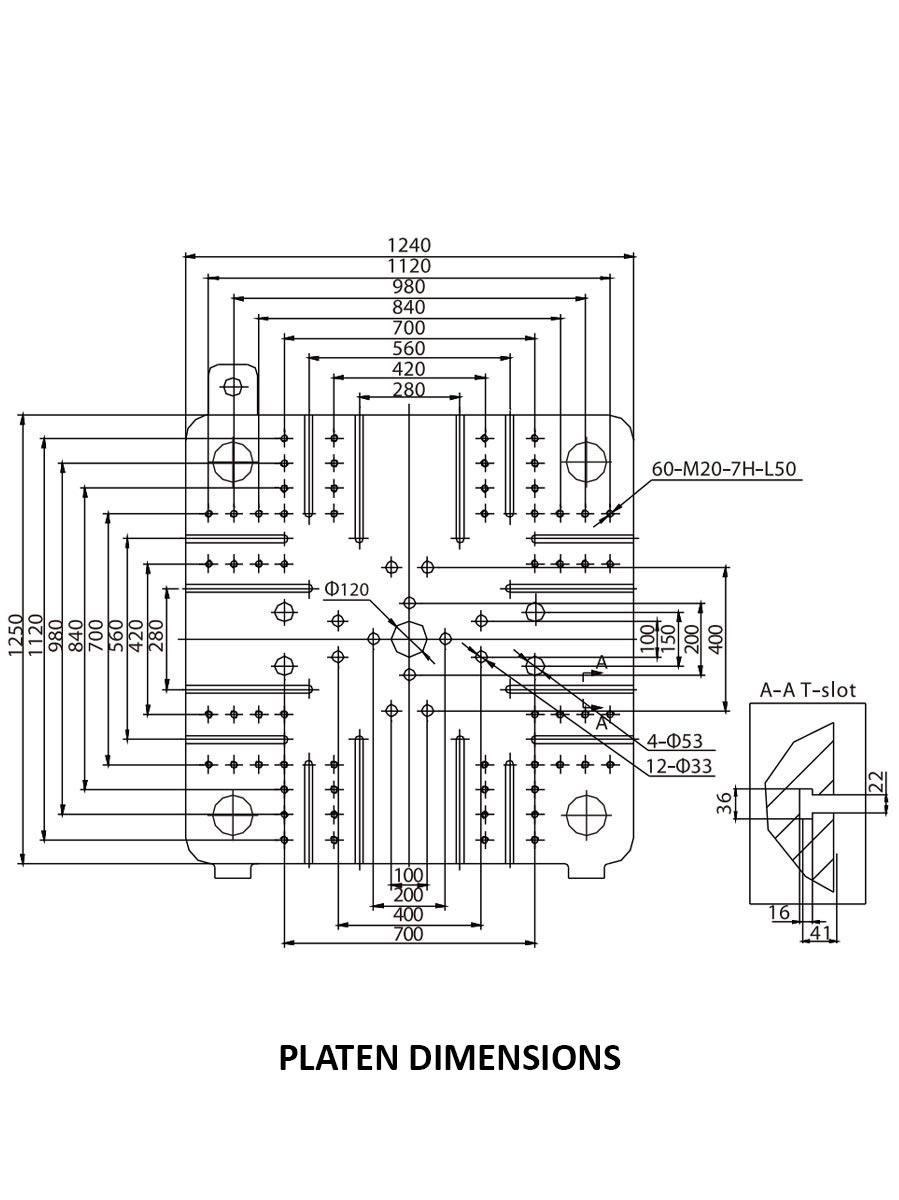

Platen dimensions(HxV) mm 1240 X 1250
Max.Mould Height mm 920
Min.Mould Height mm 350
Ejector Stroke mm 250
Ejector Force KN 158
Ejector Number n 17

OTHERS
Max.Pump Pressure Mpa 16
Pump Motor Power KW 55
Heater Power KW 36.9

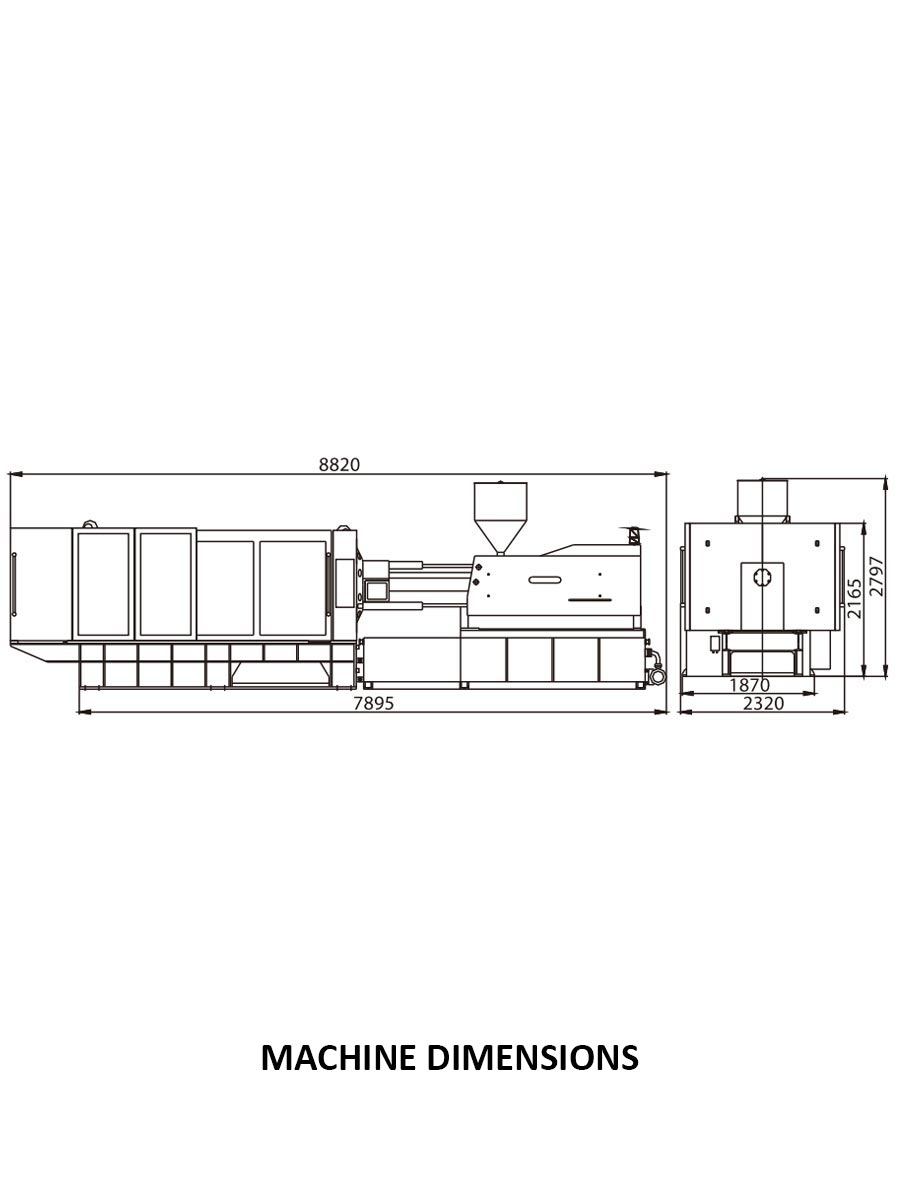

Machine Dimensions
(L x W x H)
m 8.82 X 232 X 2.80
Oil Tank Capacity Liter 1000
Machine weight Ton 27
